Pico Intelligent Harmony Machine

Harmonizer
Create 2 or 3-part harmony in any key!

$149.00

Find a Dealer

More Details

Find a Dealer

Sound Clips
Tight Metal Harmony
3-Part Harmony Lead
Interval Runthru
12-String Simulation
Jazz Harmony
Soulful Bluesy Harmony
Menu
  • Pico Intelligent Harmony Machine | Harmonizer
  • $149.00
  • Find a Dealer

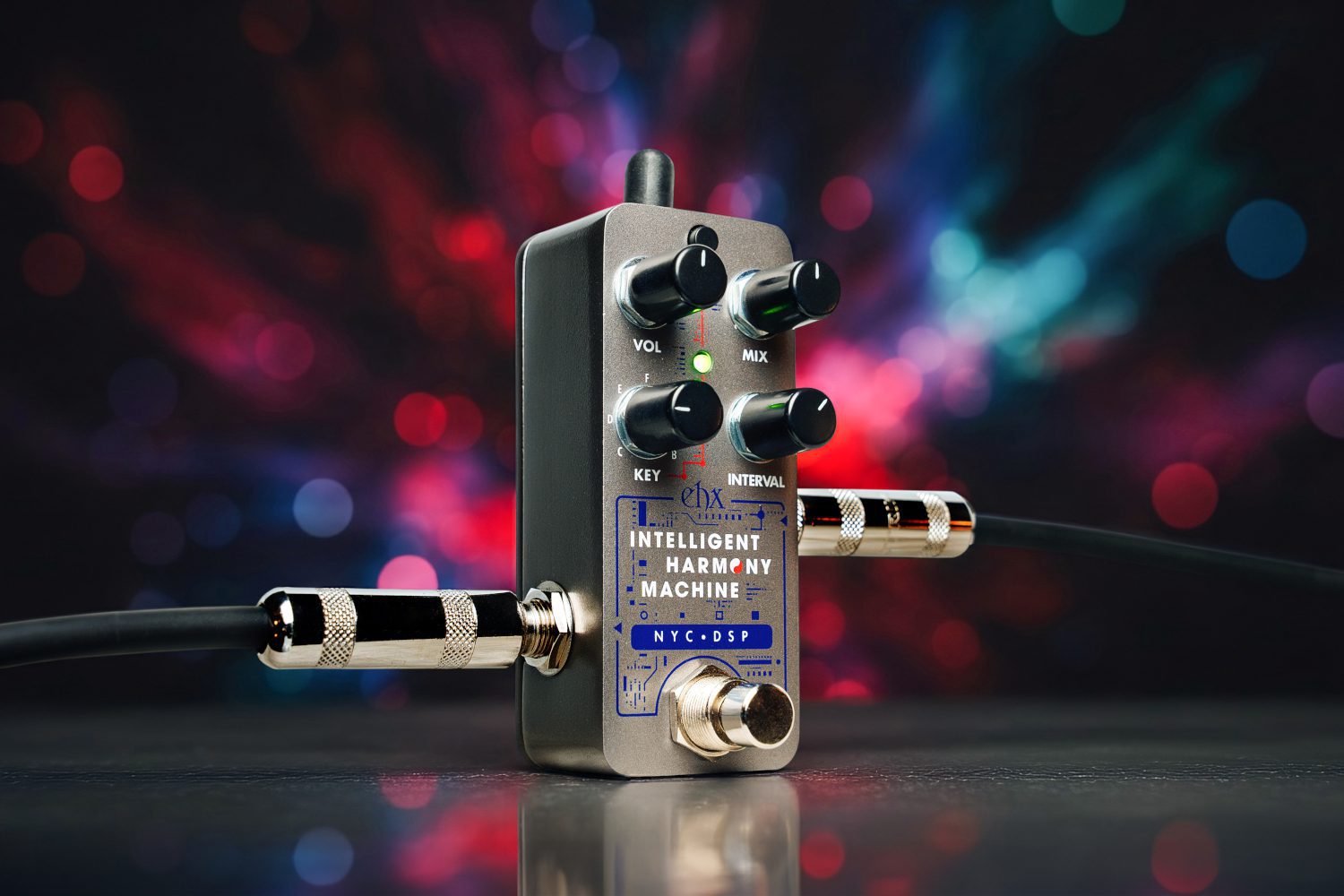

Pico Intelligent Harmony Machine

DESCRIPTION

Packing the powerful diatonic functionality of the Electro-Harmonix Intelligent Harmony Machine into an ultra-compact pedal: it’s the Pico IHM. Create 2 or 3-part harmony in any key with silky smooth operation and lightning fast-tracking to keep up with any speedy lick. With 10 Interval options, a MIX knob for precision voice blending and space-saving footprint, the Pico IHM is the perfect pocket sideman.

Housed in Electro-Harmonix’s pico-sized chassis, the Pico IHM comes complete with a simple control set. The KEY knob, in conjunction with the # button sets the key of the harmonies produced. INTERVAL selects from one of 10 harmonic interval options (see below). The MIX and VOL knobs adjust the wet/dry mix and output volume respectively. Holding down the # button enters Dual Mode which adds a second voice to the harmony produced for stunning 3-part harmonies when mixed with the dry signal.

The Pico IHM is our most compact Harmony Machine ever. Adding perfect, tight harmonies to your playing has never been easier!

  • 10 Harmony Interval Modes
  • DUAL mode adds a second voice for 3-part harmonies
  • KEY knob and # button select key of harmony
  • MIX blends wet and dry signal to dial in perfect harmonic balance
  • VOL adjusts overall output volume
  • Tight tracking keeps up with the speediest lead lines
  • Power supply included

SPECIFICATIONS

Circuit
Digital
Audio
Mono
Power Supply
9.6VDC-200mA power adapter included
Dimensions (in)
3.65 x 2.0 x 2.0
Current Draw
100mA
Year Released
2025
UPC
683274012711
Owner's Manual
Download
Power Jack
Current draw: 100mA at 9.0VDC
# Button
Press this button to switch between a natural and sharp key: Green – NATURAL KEY, Red – SHARP KEY, and Dual Mode In Dual Mode the Pico IHM synthesizes two different intervals simultaneously. The intervals are incremented as you move the INTERVAL knob from minimum to maximum. Press and hold the # button for one second to enable Dual Mode. The LED blinks in an asymmetrical pattern to indicate Dual Mode is active. Press and hold the # button again to exit Dual Mode.
VOLUME Knob
Adjusts the output volume.
MIX Knob
Adjusts the output mix from 100% dry to 100% wet.
KEY Knob
Sets the key that the IHM is tuned to, in conjunction with the # button. The key is incremented as you move this knob from minimum to maximum. The LED flashes briefly each time a new key is selected. See the following section, Setting The Key, for more information on keys and scales.
INTERVAL Knob
Controls the harmony interval relative to the input signal. The intervals are incremented as you move this knob from minimum to maximum. The LED flashes briefly each time a new interval is selected.
INPUT Jack
Impedance: 2.2MΩ, Max In: +1.5dBu
OUTPUT Jack
Impedance: 680Ω, Max Out: +2.1dBu
Footswitch and Status LED
Footswitch engages or bypasses the effect. The LED color indicates the selected key mode. In bypass mode, the LED is off.

“Tighter harmonies don't exist!”

–Mike Matthews
