OCEANS ABYSS

Advanced Reverb Laboratory
$495.00 USA Street Price

The Oceans Abyss expands on Electro-Harmonix’s highly acclaimed reverb technology to deliver a truly immersive effects workstation. The pedal is centered around dual reverb engines that are independently programmable with full-stereo algorithms including Hall, Spring, Shimmer and more. Place these reverbs into a customizable signal path with additional FX blocks like Delay, Chorus, Tremolo, or Bit Crusher for a completely unique soundscape building experience.

Quick Specs

  • Two Stereo Reverbs available at once, each fully pannable in the stereo field
  • 10 reverb types to choose from: Room, Hall, Spring, Plate, Reverse, Dynamic, Auto-Infinite, Shimmer, Polyphonic, Resonant
  • Additional FX blocks: Delay (Digital, Analog and Tape emulations), Tremolo, Chorus, Flanger, Phaser, Graphic EQ, Saturation, Bit Crusher, External FX Loop, Volume
  • Create custom signal path routing with up to 8 effects blocks. Two blocks may be reverb, the rest may be any of the additional FX blocks
  • Infinite reverb sustain with the press of a footswitch
  • Stereo Audio I/O
  • Much more!
FIND A DEALER
OWNER'S MANUAL

DUAL STEREO REVERBS

10 all-new Reverbs including Room, Hall, Spring, Plate, Reverse, Dynamic, Auto-Infinite, Shimmer, Polyphonic, and Resonant

ADDITIONAL FX BLOCKS

Featuring Delay (Digital, Analog and Tape emulations), Tremolo, Chorus, Flanger, Phaser, Graphic EQ, Saturation, Bit Crusher, External FX Loop, and Volume effects

CUSTOM SIGNAL PATH ROUTING

Create a signal path with up to 8 effects blocks including 2 independently programmable reverb blocks

Customize with additional FX blocks like delay, modulation, gain, and EQ for a a truly immersive FX workstation experience

ADVANCED
CONTROL

Artful control over nearly every parameter of your effects and dynamics, including expression/CV, stereo audio I/O, stereo FX loop routing on TRS jacks, MIDI In and Out, a high-visibility OLED graphical display, and dual action footswitches that allow for momentary or latching use.

128 USER PRESETS

128 user presets, accessible via preset footswitches and MIDI, allow for flexibility and experimentation while storing every program you need for the next gig or performance

Used with the EHXport app, presets are easily organized, backed up, and transferred for streamlined preset management

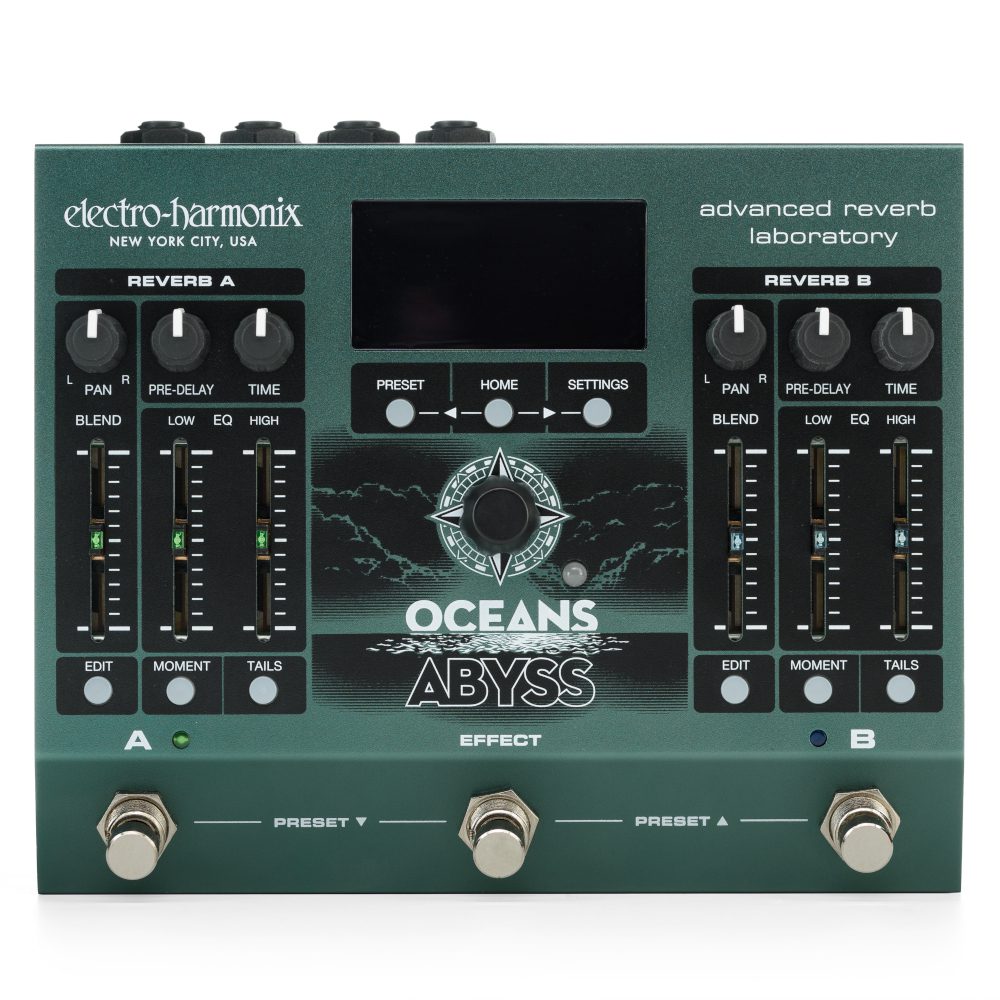

Reverb A Controls

Pan Knob, Blend Slider, Pre-Delay Knob, Time Knob, EQ Low & High Sliders, Edit Button, Moment Button, Tails Button

Reverb B Controls

Pan Knob, Blend Slider, Pre-Delay Knob, Time Knob, EQ Low & High Sliders, Edit Button, Moment Button, Tails Button

OLED Display and Preset, Home & Settings Buttons

NAVECODER Knob

Allows you to navigate menus, parameters, and presets as well as adjust settings.

A, EFFECT, B FOOTSWITCHES

Press A or B footswitches to bypass/engage all FX blocks in group A or B, respectively. When reverb A or B is assigned on the signal path, press and hold the A or B footswitch to trigger infinite sustain for the corresponding reverb. Press EFFECT footswitch to toggle the Oceans Abyss between effect mode and global bypass.

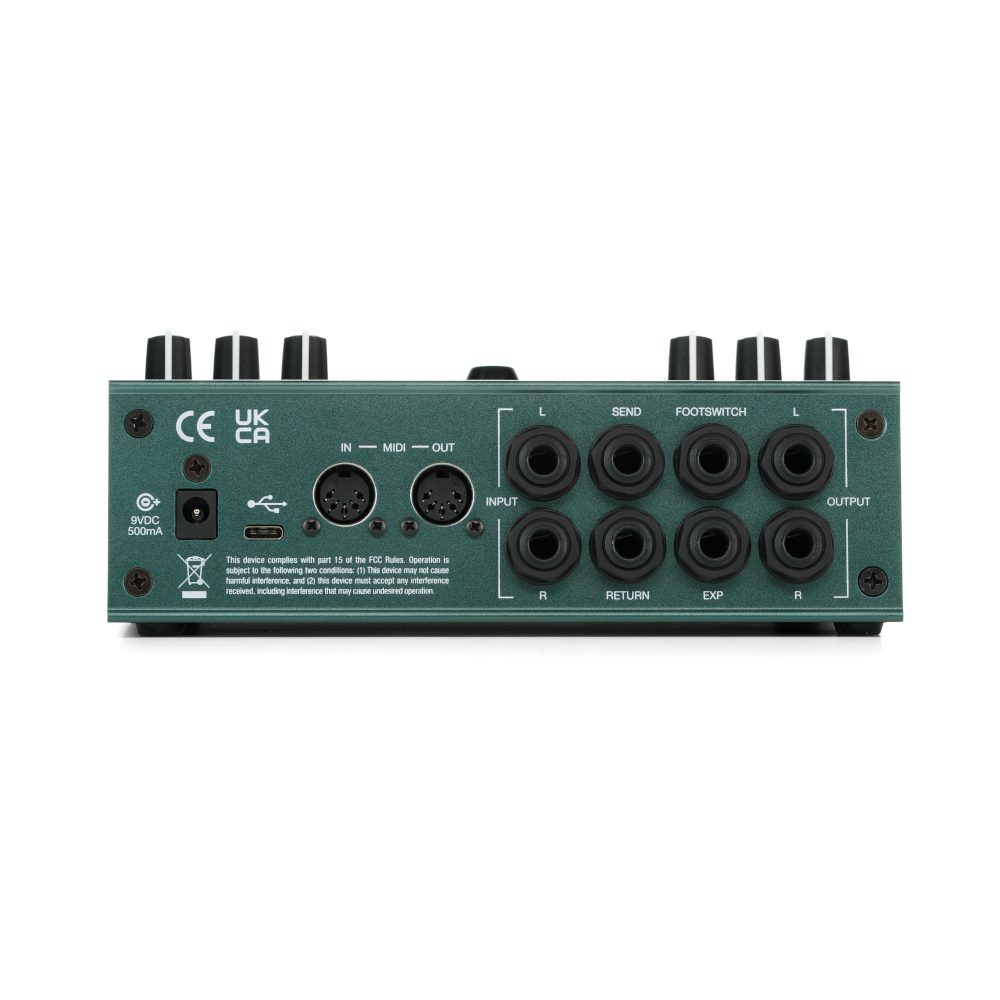

POWER JACK

USB PORT

MIDI IN AND OUT JACKS

SEND AND RETURN JACKS, FOOTSWITCH JACK, EXP JACK, L & R OUTPUT JACKS
